Tractel

Tractel Cable Sling, Steel, 1/4″, 500lb, Tensile Strength 5000lb

Model: V4173/R, V4174/R, V4176/R, V4178/R, V4174
Web Price:
  • $3999
    ref: NORFP02/4-S7
    Shipping 3 to 5 days
    39 in stock.
  • $6399
    ref: NORFP02/8-S7
    Shipping 3 to 5 days
    31 in stock.
  • $5999
    ref: NORFP02/6-S7
    Shipping 3 to 5 days
    48 in stock.
  • $4399
    ref: NORFP02/3-S7
    Shipping 3 to 5 days
    12 in stock.
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Applications
Construction
Material
Steel
Norme
ANSI A10.32-2004ANSI Z359.3-2007CSAOSHA 1910OSHA 1926

Description

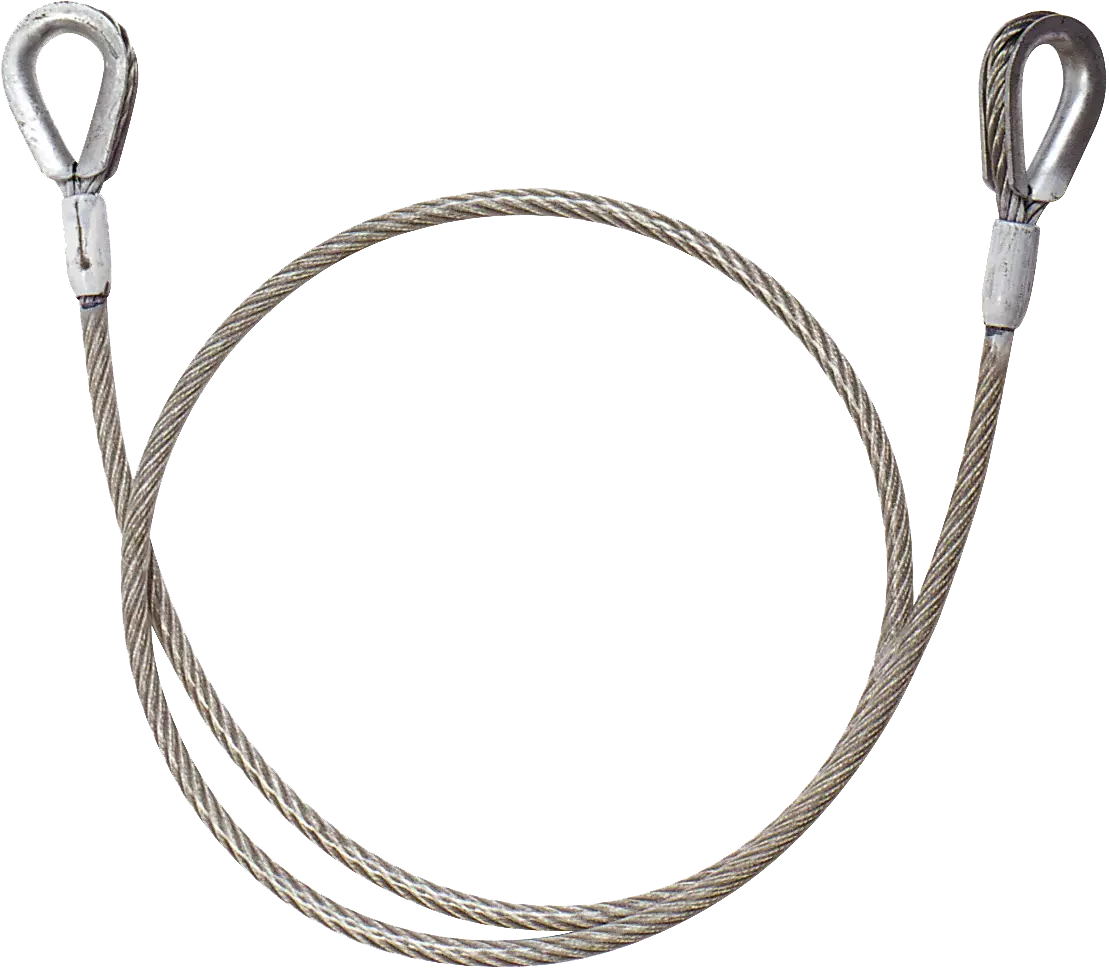

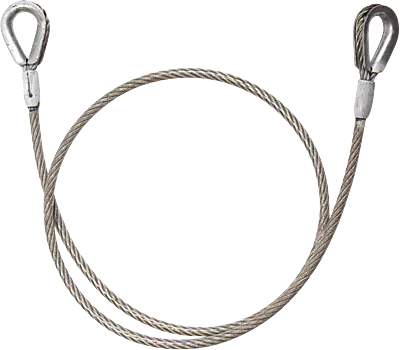

Photo as an indication

  • Steel cable sling, wrapped around a beam or any other approved structure, for an anchor point that can support up to 22.2 kN (5,000 pounds)
  • 7 x 19 vinyl coated steel cable
  • Wire rope diameter: 1⁄4 in / 6 mm
  • Vinyl covered cable diameter: 5⁄16 in / 8 mm
  • Tensile Force: 7,000lb / 31.1 kN
  • Termination: Splice with steel thimbles at both ends
  • Capacity: 500 lb / 225 kg, one person
  • Manufactured to CSA standards
  • ANSI/ASSE Z359.3-2007
  • ANSI/ASSE A10.32-2004
  • OSHA 1926 and 1910
  • Warning: Always choose an anchor point that is rigid and capable of supporting a weight of 22.2 kN (5,000 lb) for each person attached to it.
