LSP Approved

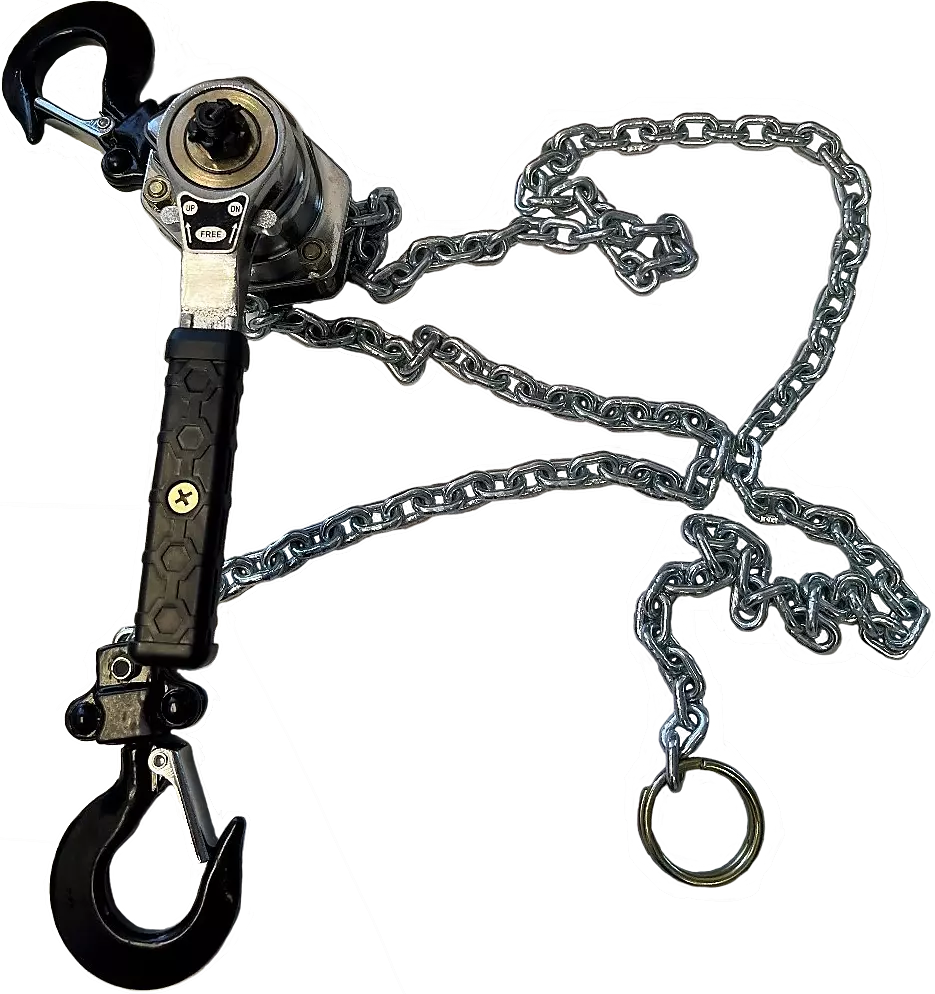

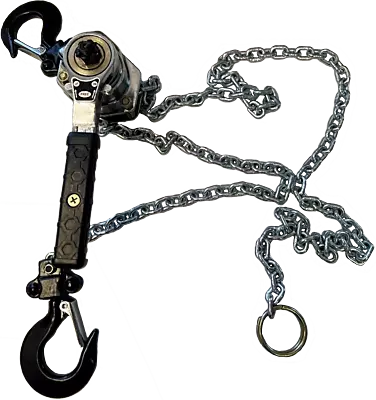

LZ Series Mini Ratchet Puller

Model: LZ003, LZ005
Web Price:
  • $19399
    ref: RATPUL1/25BZ-25A
    Shipping 3 to 5 days
    16 in stock.
  • $18399
    ref: RATPUL1/410BZ-25A
    Shipping 3 to 5 days
    37 in stock.
  • $13099
    ref: RATPUL1/45BZ-25A
    Shipping 3 to 5 days
    129 in stock.
    1.
    1. WLL
    2. 0.25t
    3. 0.5t
    1. Chain Grade 80
    2. C4X12Z
    3. C5X15Z
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Standards
ANSI B30ASME B30ATEX certified II 3 GD c IIB 54 C XNASA-STD-8719.9OSHA
P A C H L B K D
  1. WLL
  2. ¼t
  3. ½t
  1. H Min.
  2. 9.8"
  3. 10.6"
  1. A
  2. 3.6"
  3. 4.1"
  1. B
  2. 2.8"
  3. 3.1"
  1. C
  2. 3.3"
  3. 3.2"
  1. D
  2. 1.2"
  3. 1.4"
  1. K
  2. 1.2"
  3. 1.4"
  1. L
  2. 6.3"
  3. 11.8"
  1. P Max.
  2. 56.2lb
  3. 76.4lb
  1. Weight /lift Ft.
  2. 0.28lb
  3. 0.35lb
  1. Weight 5Ft lift
  2. 4.4lb
  3. 8.2lb

Description

  • 1/4 and 1/2 Metric ton capacity
  • Planetary gearing is used to minimize operator effort and to reduce stress on the brake components
  • Small size allows operation and storage in tight places
  • Lightweight and durable all steel construction with plated frame components and durable chrome exterior finish to resist corrosion
  • Grade 80 Zinc plated alloy load chain
  • Sleeve bearings used to maximize serviceability and provide good efficiency
  • Self-adjusting pawl and disc type mechanical load brake insures positive load control
  • Meets: ASME/ANSl B30, OSHA, NASA-STD-8719.9
  • ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
  • Available in customized chain lengths
