LSP Approved

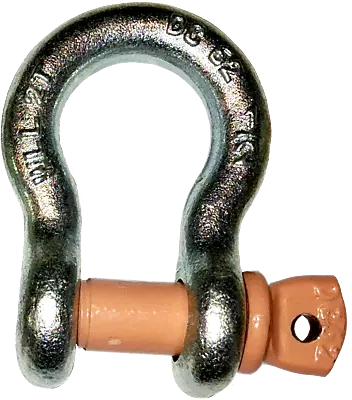

Screw Pin Anchor Shackle B30, ⅓t to 55t

Model: G209
Web Price:
  • $899
    ref: G2091/2B30-5P
    Shipping 3 to 5 days
    2444 in stock.
  • $499
    ref: G2091/4B30-5P
    Shipping 3 to 5 days
    1171 in stock.
  • $14599
    ref: G20911/2B30-5P
    Shipping 3 to 5 days
    82 in stock.
  • $8899
    ref: G20911/4B30-5P
    Shipping 3 to 5 days
    220 in stock.
  • $5999
    ref: G20911/8B30-5P
    Shipping 3 to 5 days
    97 in stock.
  • $26199
    ref: G20913/4B30-5P
    Shipping 3 to 5 days
    54 in stock.
  • $12399
    ref: G20913/8B30-5P
    Shipping 3 to 5 days
    91 in stock.
  • $4799
    ref: G2091B30-5P
    Shipping 3 to 5 days
    113 in stock.
  • $54499
    ref: G20921/2B30-5P
    Shipping 3 to 5 days
    12 in stock.
  • $26799
    ref: G2092B30-5P
    Shipping 3 to 5 days
    28 in stock.
  • $499
    ref: G2093/16B30-5P
    Shipping 3 to 5 days
    628 in stock.
  • $2099
    ref: G2093/4B30-5P
    Shipping 3 to 5 days
    408 in stock.
  • $699
    ref: G2093/8B30-5P
    Shipping 3 to 5 days
    1774 in stock.
  • $599
    ref: G2095/16B30-5P
    Shipping 3 to 5 days
    2651 in stock.
  • $1499
    ref: G2095/8B30-5P
    Shipping 3 to 5 days
    2516 in stock.
  • $799
    ref: G2097/16B30-5P
    Shipping 3 to 5 days
    140 in stock.
  • $3199
    ref: G2097/8B30-5P
    Shipping 3 to 5 days
    630 in stock.
    1.
    1. WLL
    2. 0.33t
    3. 0.5t
    4. 0.75t
    5. 1t
    6. 1.5t
    7. 2t
    8. 3.25t
    9. 4.75t
    10. 6.5t
    11. 8.5t
    12. 9.5t
    13. 12t
    14. 13.5t
    15. 17t
    16. 25t
    17. 35t
    18. 55t
    1. Weight
    2. 0.06lb
    3. 0.10lb
    4. 0.17lb
    5. 0.29lb
    6. 0.44lb
    7. 0.67lb
    8. 1.32lb
    9. 2.25lb
    10. 3.62lb
    11. 5.03lb
    12. 6.42lb
    13. 9.66lb
    14. 12.87lb
    15. 16.73lb
    16. 28.13lb
    17. 39.66lb
    18. 83.77lb
    1. Nominal Caliber
    2. 0.19"
    3. 0.25"
    4. 0.31"
    5. 0.38"
    6. 0.44"
    7. 0.5"
    8. 0.63"
    9. 0.75"
    10. 0.88"
    11. 1"
    12. 1.13"
    13. 1.25"
    14. 1.38"
    15. 1.5"
    16. 1.75"
    17. 2"
    18. 2.5"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
6/1
Material
Steel
Standards
ASME B30.26
  1. WLL
  2. ⅓t
  3. ½t
  4. ¾t
  5. 1t
  6. 1½t
  7. 2t
  8. 3¼t
  9. 4¾t
  10. 6½t
  11. 8½t
  12. 9½t
  13. 12t
  14. 13½t
  15. 17t
  16. 25t
  17. 35t
  18. 55t
  1. A
  2. 0.38"
  3. 0.47"
  4. 0.53"
  5. 0.66"
  6. 0.75"
  7. 0.81"
  8. 1.06"
  9. 1.25"
  10. 1.44"
  11. 1.69"
  12. 1.81"
  13. 2.03"
  14. 2.24"
  15. 2.38"
  16. 2.87"
  17. 3.25"
  18. 4.09"
  1. B
  2. 0.25"
  3. 0.31"
  4. 0.38"
  5. 0.44"
  6. 0.50"
  7. 0.63"
  8. 0.75"
  9. 0.88"
  10. 1.00"
  11. 1.13"
  12. 1.25"
  13. 1.38"
  14. 1.50"
  15. 1.63"
  16. 2.00"
  17. 2.25"
  18. 2.75"
  1. C
  2. 0.88"
  3. 1.10"
  4. 1.19"
  5. 1.41"
  6. 1.66"
  7. 1.86"
  8. 2.36"
  9. 2.80"
  10. 3.31"
  11. 3.74"
  12. 4.25"
  13. 4.69"
  14. 5.16"
  15. 5.83"
  16. 6.97"
  17. 7.76"
  18. 10.51"
  1. E
  2. 0.60"
  3. 0.78"
  4. 0.84"
  5. 1.03"
  6. 1.16"
  7. 1.30"
  8. 1.65"
  9. 2.01"
  10. 2.28"
  11. 2.68"
  12. 2.91"
  13. 3.23"
  14. 3.50"
  15. 3.86"
  16. 5.00"
  17. 5.75"
  18. 7.24"
  1. F
  2. 0.56"
  3. 0.61"
  4. 0.75"
  5. 0.91"
  6. 1.06"
  7. 1.19"
  8. 1.54"
  9. 1.85"
  10. 2.13"
  11. 2.36"
  12. 2.60"
  13. 2.99"
  14. 3.31"
  15. 3.62"
  16. 4.29"
  17. 5.00"
  18. 5.91"

Description

  • Titian™ screw pin anchor shackles
  • Working load limit and size are permanently forged onto every shackle
  • Capacities 1/3 through 55 metric tons
  • Meet or exceed all requirements of ASME B30.26
  • Safety factor: 6:1
  • Traceability batch code and the manufacturer traceability code are forged onto each sackle and pin
  • Proof testing certificate available
  • Forged-Quenched and tempered with alloy pins
  • Hot dip galvanized
