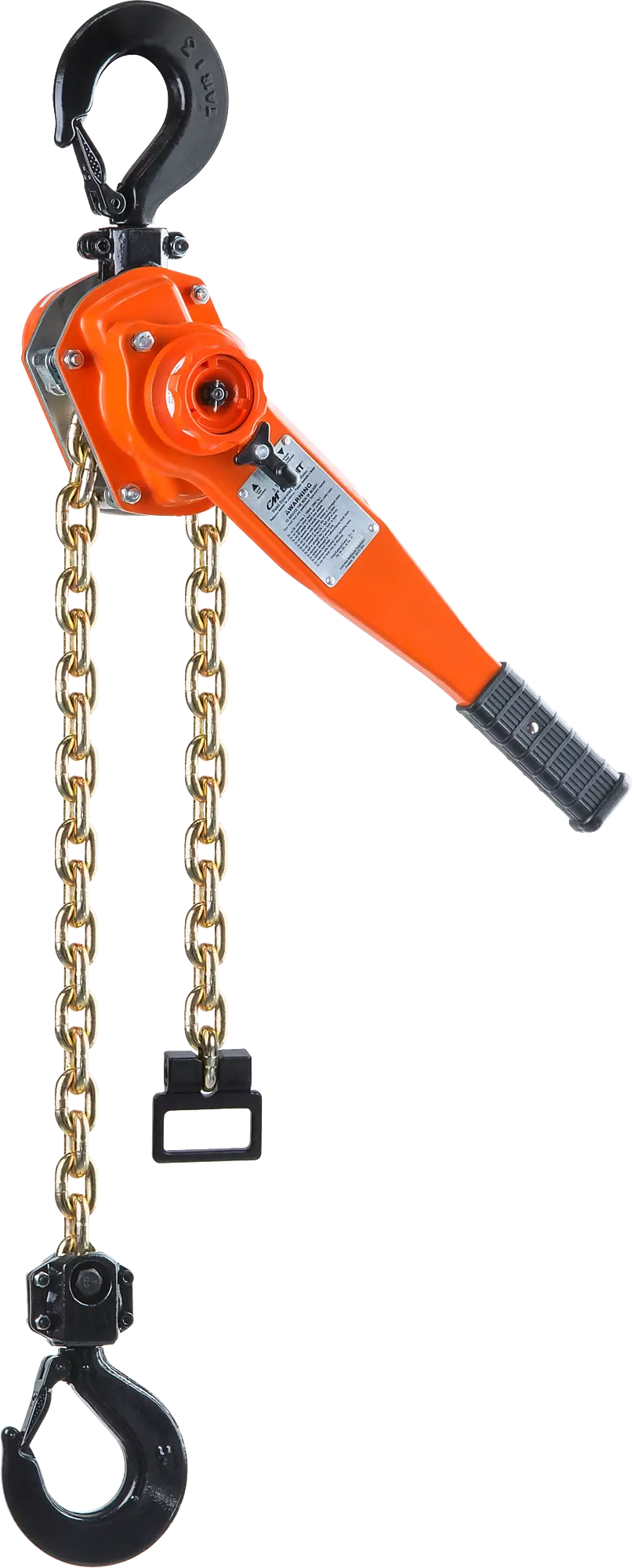

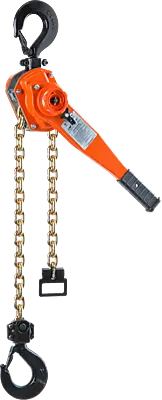

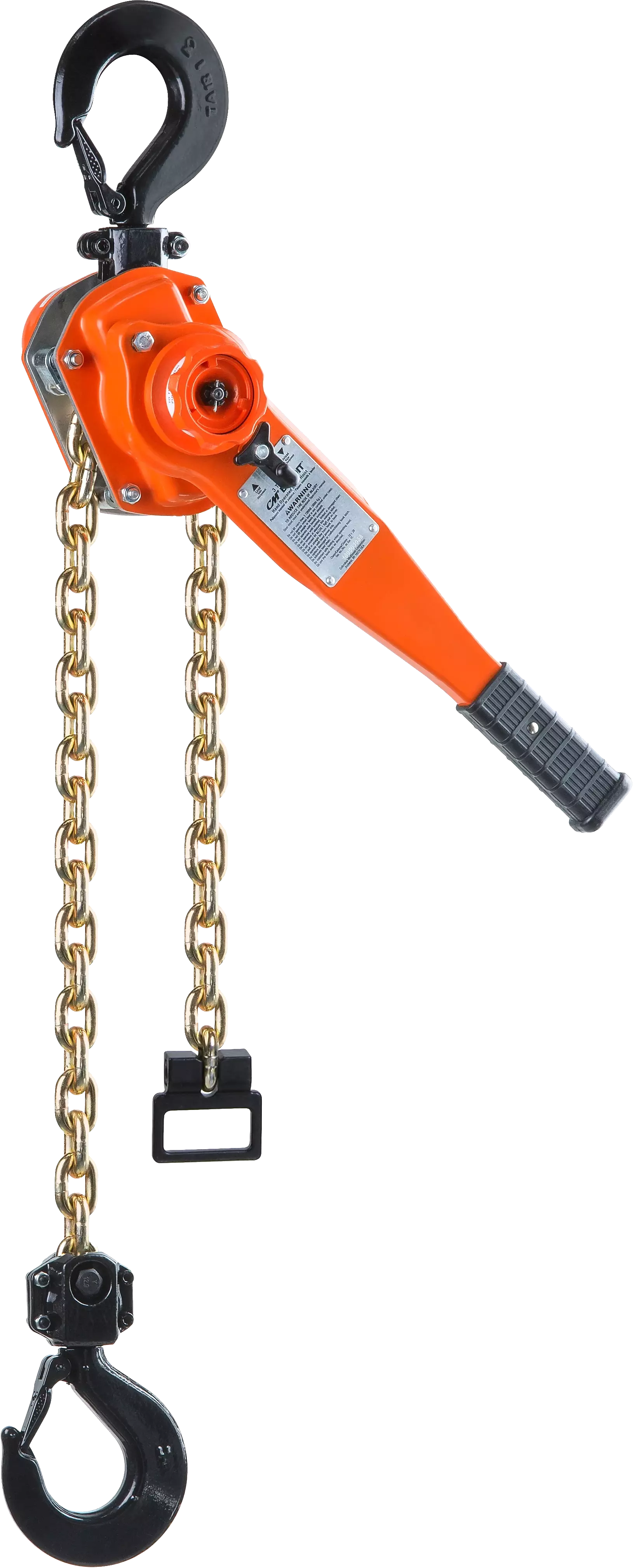

CM Bandit Lever Hoist, 3t

Model: BAN30010
Web Price:
  • $239999
    ref: RATPUL310BAND-21A
    We do not know if nor when this product will be available again.
    1.
    1. WLL
    2. 3t
    1. Weight
    2. 45.7lb
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Standards
ASME B30.21ASME HST-3-3
  1. WLL
  2. 3t
  1. A
  2. 17.50"
  1. B
  2. 1.69"
  1. C
  2. 1.56"
  1. D
  2. 1.25"
  1. E
  2. 16.37"
  1. F
  2. 7.52"
  1. G
  2. 3.38"
  1. H
  2. 4.65"
  1. J
  2. 7.84"
  1. K
  2. 3.29"
  1. L
  2. 4.56"

Description

  • Capacities of 3 tons.
  • Metric Rated.
  • Standard lifts up to 20 feet.
  • Rugged yet lightweight design and constructionallow the Bandit to be easily transported andused in even the most confined spaces.
  • Allows for quick take up and positioning of slack chain.
    Designed not to accidently free chain while under load.
  • Full rotation of handle allows for versatile
    rigging options when working in tight spaces.
  • Double reduction gearing provides easy operation
    with minimal handle effort.
  • Screwed-on comfortable
    rubber grip for a secure hold in all environments.
  • Upper and lower hooks feature standard cast
    safety latches that provide positive and secure
    load engagement. Hooks are bolted on for easy
    removal and inspection.
  • Meets ASME B30.21 et ASME-HST3-3
  • Enclosed Weston-type load brake stays
    clean and dry for positive load positioning.
  • Upper and lower hooks feature extra-wide throat
    openings to allow for easier attachment to pick
    points. Hooks swivel 360° for faster positioning.
  • Impact-resistant stamped steel housing
    withstands repeated rigorous use.
  • Standard powder coat finish on housing and zinc
    plating on major components for extra protection
    against corrosion in harsh environments.
  • Gold
    chromate chain, as well as
    all units with special lifts. Zinc-plated and gold
    chromate offer excellent protect against corrosion.
    Gold chromate chain is designed and manufactured
    in the U.S.A. by Columbus McKinnon.
