R-W-M

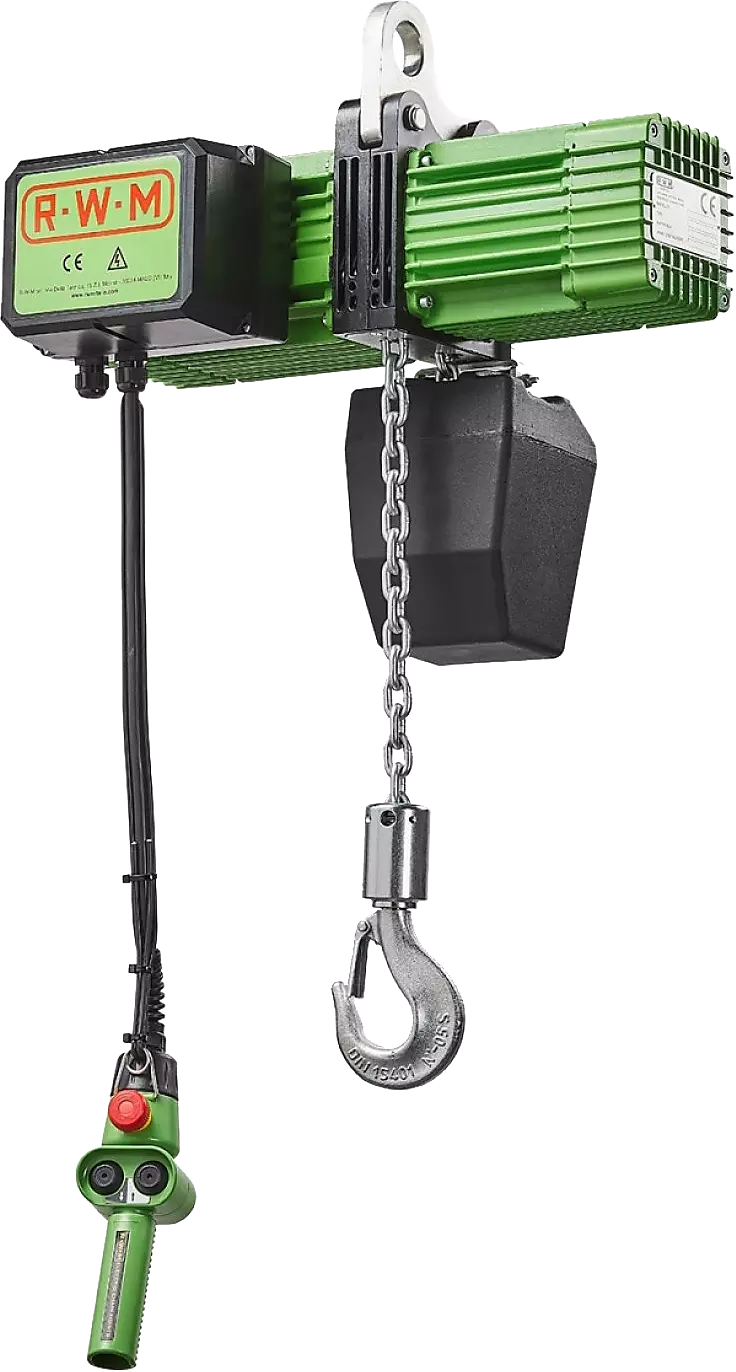

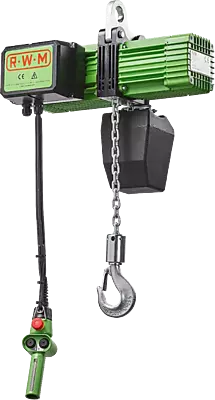

RWM Electric Chain Hoist F Type, W Series, ¼t

Model: F-1000W4, F0250W14
Web Price:
  • $377199
    ref: PELECT1/42016RWM-22A
    Shipping 3 to 5 days
    2 remaining. Liquidation Final Sale.
    1.
    1. WLL
    2. 0.25t
    1. Weight
    2. 59.52lb
    1. FPM
    2. 1/4m
    1. Kilowatt
    2. 0.2-0.5Kw
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Duty Cycles
H4 (30min/h)
Hertz
60Hz
IP Water and Dust Protection
IP54
Phase
1
Standards
CSA
Voltage
120V
  1. WLL
  2. ¼t
  3. 1t
  1. A
  2. 395mm
  3. 495mm
  1. B
  2. 255mm
  3. 270mm
  1. B1
  2. 70mm
  3. 72mm
  1. C
  2. 4mm
  3. 7mm
  1. C1
  2. 5mm
  3. 8.4mm
  1. C2
  2. 13.7mm
  3. 23.6mm
  1. C3
  2. 12mm
  3. 22mm
  1. D
  2. 146mm
  3. 162mm
  1. D1
  2. 90mm
  3. 132mm
  1. E
  2. 100mm
  3. 104mm
  1. G
  2. 30mm
  3. 43mm
  1. G1
  2. 22mm
  3. 32mm
  1. H
  2. 150mm
  3. 190mm
  1. H1
  2. 235mm
  3. 250mm
  1. H2
  2. 205mm
  3. 233mm
  1. H3
  2. 440mm
  3. 483mm
  1. L
  2. 155mm
  3. 160mm
  1. M
  2. 170mm
  3. 182mm
  1. S
  2. 185mm
  3. 280mm

Description

  • Chain container (rigid or flexible)
  • Overload protection
  • Limit switches (up/dw)
  • Thermal protection
  • Galvanized load chain (stainless available upon request)
  • Electromagnetic braking system (allows for immediate and safe braking)
  • Swivel hook with latch – Zinc plated
  • Available in 2 speed version
  • IP54 protection (fine dust and humidity)
  • Ergonomic low voltage push button – IP65 – with E-stop
  • 2 Year warranty
  • CSA approuved
