Crosby

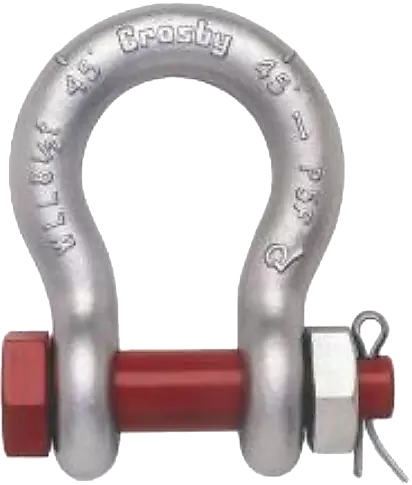

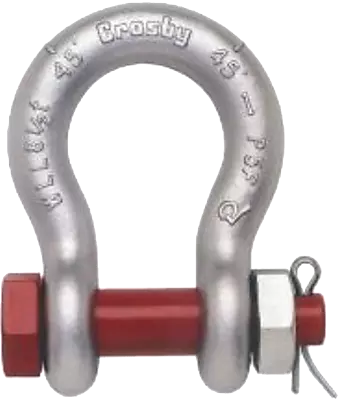

Crosby Bolted Shackle with Pin, 55t to 150t

Model: G2130
Web Price:
  • $230599
    ref: G213021/2CS-5P
    We do not know if nor when this product will be available again.
  • $314799
    ref: G21303CS-5P
    We do not know if nor when this product will be available again.
  • $679799
    ref: G213031/2CS-5P
    We do not know if nor when this product will be available again.
  • $837899
    ref: G21304CS-5P
    We do not know if nor when this product will be available again.
    1.
    1. WLL
    2. 55t
    3. 85t
    4. 120t
    5. 150t
    1. Weight
    2. 98.25lb
    3. 154lb
    4. 265lb
    5. 338lb
    1. Nominal Caliber
    2. 2.5"
    3. 3"
    4. 3.5"
    5. 4"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
6/1
Standards
ASME B30.26RR-C 271D Type IVA, Grad A, Class 3
  1. WLL
  2. 55t
  3. 85t
  4. 120t
  5. 150t
  1. A
  2. 4.13"
  3. 5.00"
  4. 5.25"
  5. 5.50"
  1. B
  2. 2.80"
  3. 3.30"
  4. 3.76"
  5. 4.26"
  1. C
  2. 10.50"
  3. 13.00"
  4. 14.63"
  5. 14.50"
  1. D
  2. 2.71"
  3. 3.12"
  4. 3.62"
  5. 4.00"
  1. E
  2. 7.25"
  3. 7.88"
  4. 9.00"
  5. 10.00"
  1. F
  2. 5.69"
  3. 6.50"
  4. 8.00"
  5. 9.00"
  1. H
  2. 17.90"
  3. 21.50"
  4. 24.88"
  5. 25.68"
  1. L
  2. 12.75"
  3. 14.62"
  4. 17.02"
  5. 18.00"
  1. M
  2. 13.58"
  3. 15.13"
  4. 17.00"
  5. 17.75"
  1. N
  2. 3.13"
  3. 3.62"
  4. 4.38"
  5. 4.56"

Description

  • Capacities from 55 to 150 metric tons
  • Forged, tempered and tempered.
  • Alloy steel axles
  • Forged SWL on each shackle
  • Hot-dip galvanized, designed  to resist fatigue
  • Safety factor: 6:1
  • Certification available upon request
  • Designed to resist fatigue
  • Crosby products meet or exceed all requirements of ASME B30.26
  • Bolted and pinned bow shackle with thin bolt head conforming to RR-C 27ID Type IVA, Grade A, Class 3 of the Federal Specification, except for special specifications requested by the contractor.
