Crosby

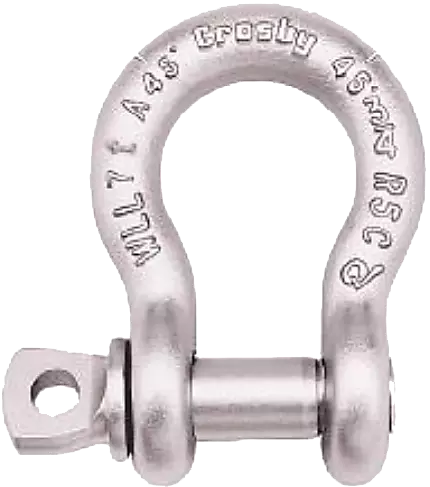

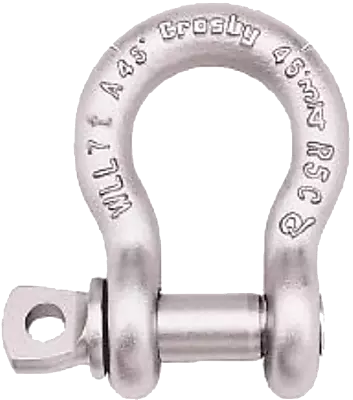

Crosby Alloy Screw Pin Anchor Shackle, 2t to 9.5t

Model: G209A
Web Price:
  • $2299
    ref: G209A3/8CS-5P
    Shipping 3 to 5 days
    45 in stock.
  • $2799
    ref: G209A7/16CS-5P
    We do not know if nor when this product will be available again.
  • $4599
    ref: G209A1/2CS-5P
    Shipping 3 to 5 days
    55 in stock.
  • $4999
    ref: G209A5/8CS-5P
    We are expecting more in 12 days.
  • $7099
    ref: G209A3/4CS-5P
    Shipping 3 to 5 days
    6 in stock.
  • $9299
    ref: G209A7/8CS-5P
    Shipping 3 to 5 days
    8 in stock.
    1.
    1. WLL
    2. 2t
    3. 2.66t
    4. 3.33t
    5. 5t
    6. 7t
    7. 9.5t
    1. Weight
    2. 0.31lb
    3. 0.38lb
    4. 0.63lb
    5. 1.38lb
    6. 2.35lb
    7. 3.61lb
    1. Nominal Caliber
    2. 0.38"
    3. 0.44"
    4. 0.5"
    5. 0.63"
    6. 0.75"
    7. 0.88"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
4.5/1
Standards
ASME B30.26RR-C 271D Type IVA, Grad B, Class 2
  1. WLL
  2. 2t
  3. 2 ⅔t
  4. 3 ⅓t
  5. 5t
  6. 7t
  7. 9 ½t
  1. A
  2. 0.66"
  3. 0.75"
  4. 0.81"
  5. 1.06"
  6. 1.25"
  7. 1.44"
  1. B
  2. 0.44"
  3. 0.50"
  4. 0.63"
  5. 0.75"
  6. 0.88"
  7. 1.00"
  1. C
  2. 1.44"
  3. 1.69"
  4. 1.88"
  5. 2.38"
  6. 2.81"
  7. 3.31"
  1. D
  2. 0.38"
  3. 0.44"
  4. 0.50"
  5. 0.63"
  6. 0.75"
  7. 0.88"
  1. E
  2. 1.03"
  3. 1.16"
  4. 1.31"
  5. 1.69"
  6. 2.00"
  7. 2.28"
  1. F
  2. 0.91"
  3. 1.06"
  4. 1.19"
  5. 1.50"
  6. 1.81"
  7. 2.09"
  1. G
  2. 1.78"
  3. 2.03"
  4. 2.31"
  5. 2.94"
  6. 3.50"
  7. 4.03"
  1. H
  2. 2.49"
  3. 2.91"
  4. 3.28"
  5. 4.19"
  6. 4.97"
  7. 5.83"
  1. L
  2. 0.25"
  3. 0.31"
  4. 0.38"
  5. 0.44"
  6. 0.50"
  7. 0.50"
  1. M
  2. 2.03"
  3. 2.38"
  4. 2.69"
  5. 3.34"
  6. 3.97"
  7. 4.50"
  1. P
  2. 0.38"
  3. 0.44"
  4. 0.50"
  5. 0.69"
  6. 0.81"
  7. 0.97"

Description

  • Forged SWL on each shackle
  • Capacities from 2 to 9.5 metric tons
  • Alloy steel forged, quenched and tempered. Alloy steel axles
  • Shackles can be supplied with proof test certificate
  • Hot-dip galvanized
  • ASME B30.26
  • Design Factor : 4.5/1
  • Bow shackle screwed to RR-C 27ID Type IVA, Grade B, Class 2 of the Federal Specification, except for special specifications requested by the contractor.
