CM

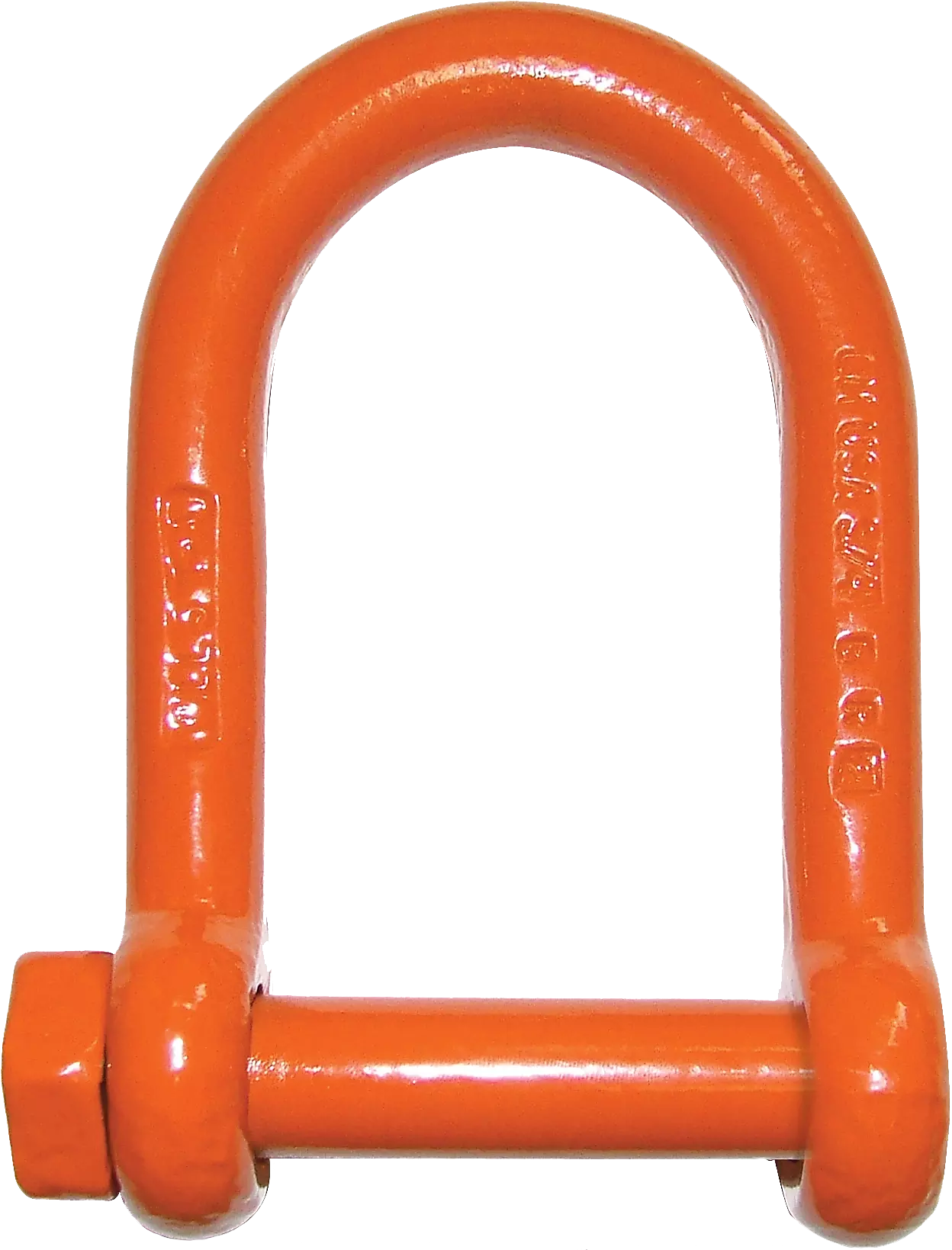

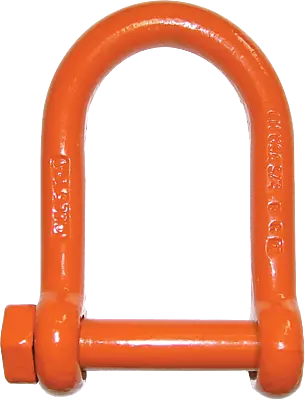

CM Long Reach Shackle, 7000lb to 50000lb

Model: CM7151P, CM7152P, CM7154P, CM7156P, CM7157P, CM717P
Web Price:
  • $14399
    ref: MANILLEM7151P-5P
    Shipping 3 to 5 days
    57 in stock.
  • $16299
    ref: MANILLEM7152P-5P
    Shipping 3 to 5 days
    9 in stock.
  • $17999
    ref: MANILLEM7154P-5P
    Shipping 3 to 5 days
    16 in stock.
  • $32099
    ref: MANILLEM7156P-5P
    We do not know if nor when this product will be available again.
  • $38599
    ref: MANILLEM7157P-5P
    We do not know if nor when this product will be available again.
  • $86599
    ref: MANILLEM7177P-5P
    We are expecting more in 20 days.
    1.
    1. WLL
    2. 7000lb
    3. 10000lb
    4. 19000lb
    5. 28000lb
    6. 34000lb
    7. 50000lb
    1. Weight
    2. 1.80lb
    3. 2.72lb
    4. 5.86lb
    5. 11.90lb
    6. 11.60lb
    7. 30.70lb
    1. Nominal Caliber
    2. 0.63"
    3. 0.75"
    4. 1"
    5. 1.25"
    6. 1.5"
    7. 1.75"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
5/1
Standards
ASME B30.26
  1. WLL
  2. 7000lb
  3. 10000lb
  4. 19000lb
  5. 28000lb
  6. 34000lb
  7. 50000lb
  1. P
  2. 0.75"
  3. 0.88"
  4. 1.00"
  5. 1.38"
  6. 1.50"
  7. 2.00"
  1. D
  2. 0.63"
  3. 0.75"
  4. 1.00"
  5. 1.25"
  6. 1.50"
  7. 1.75"
  1. L
  2. 4.00"
  3. 5.00"
  4. 5.50"
  5. 6.19"
  6. 7.00"
  7. 8.00"
  1. W
  2. 2.25"
  3. 2.75"
  4. 3.25"
  5. 3.88"
  6. 4.50"
  7. 5.25"
  1. G
  2. 1.57"
  3. 1.81"
  4. 2.38"
  5. 3.06"
  6. 3.50"
  7. 4.00"

Description

  • Capacities of 7,000 lbs. at 50,000 lbs.
  • Meets ASME B30.26 standard
  • Design factor : 5/1
  • Alloy steel
  • Capacity forged on each shackle
  • The load should be evenly distributed over the entire shackle to achieve the full working load limit
