LSP Approved

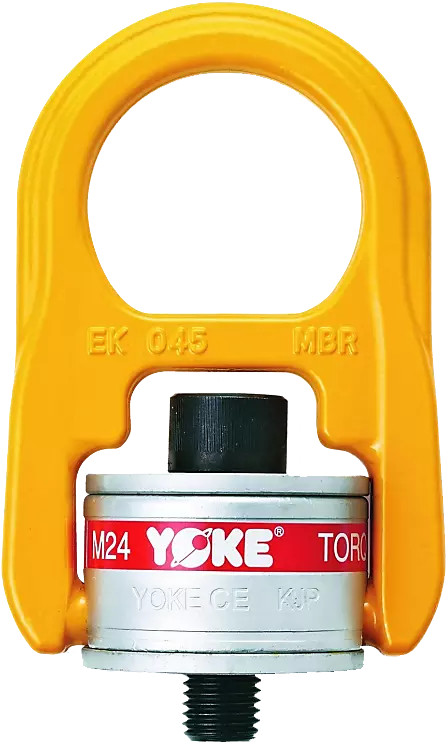

Swivel Hoist Ring, 800lb to 30000lb

Model: 8-204
Web Price:
  • $11399
    ref: HR1255/16182YO-5P
    We do not know if nor when this product will be available again.
  • $14799
    ref: HR1253/8162YO-5P
    We do not know if nor when this product will be available again.
  • $17799
    ref: HR1251/213250YO-5P
    Shipping 3 to 5 days
    4 in stock.
  • $26099
    ref: HR1253/410275YO-5P
    We do not know if nor when this product will be available again.
  • $37699
    ref: HR12518350YO-5P
    We do not know if nor when this product will be available again.
  • $144699
    ref: HR12511/2665YO-5P
    We do not know if nor when this product will be available again.
  • $148299
    ref: HR12524565YO-5P
    We do not know if nor when this product will be available again.
    1.
    1. WLL
    2. 800lb
    3. 1000lb
    4. 2500lb
    5. 5000lb
    6. 10000lb
    7. 24000lb
    8. 30000lb
    1. Weight
    2. 0.9lb
    3. 0.9lb
    4. 3.70lb
    5. 4.00lb
    6. 9.70lb
    7. 35.20lb
    8. 35.20lb
    1. Chain Grade 80
    2. 18X2"
    3. 16X2"
    4. 13X2.5"
    5. 10X2.75"
    6. 8X3.5"
    7. 6X6.5"
    8. 4.5X6.5"
    1. Nominal Caliber
    2. 0.31"
    3. 0.38"
    4. 0.5"
    5. 0.75"
    6. 1"
    7. 1.5"
    8. 2"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
5/1
Standards
ASME B30.26ASTM A574
A G M E F B D
  1. WLL
  2. 800lb
  3. 1000lb
  4. 2500lb
  5. 5000lb
  6. 10000lb
  7. 24000lb
  8. 30000lb
  1. A
  2. 1.57"
  3. 1.57"
  4. 2.56"
  5. 2.56"
  6. 3.35"
  7. 4.72"
  8. 4.72"
  1. B
  2. 1.61"
  3. 1.61"
  4. 2.32"
  5. 2.87"
  6. 2.87"
  7. 4.29"
  8. 4.29"
  1. D
  2. 0.35"
  3. 0.35"
  4. 0.59"
  5. 0.59"
  6. 0.87"
  7. 1.38"
  8. 1.38"
  1. E
  2. 0.71"
  3. 0.71"
  4. 0.75"
  5. 1.24"
  6. 1.36"
  7. 2.17"
  8. 3.01"
  1. F
  2. 4.02"
  3. 4.02"
  4. 6.26"
  5. 6.26"
  6. 8.03"
  7. 12.09"
  8. 12.09"
  1. G
  2. 2.56"
  3. 2.56"
  4. 4.13"
  5. 4.13"
  6. 5.28"
  7. 8.66"
  8. 8.66"

Description

  • All Swivel Hoist Rings meet or exceed all the requirement of ASME B30.26
  • Hoist Ring Bail are designed by forged alloy steel, quenched and tempered
  • Each forged parts and cap screw with Batch code links to Test Certificate sheet
  • Hoist Rings are 360°swivel with 180°pivot function
  • Bolt are UNC thread, specification is a grade 8 alloy socket head cap screw per ASTM A 574
  • Proof Load individually to 2.5 times Working Load Limit and certified
  • 100% magnaflux crack detection
