Coffing Hoists

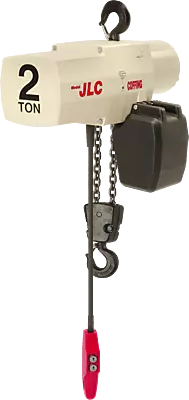

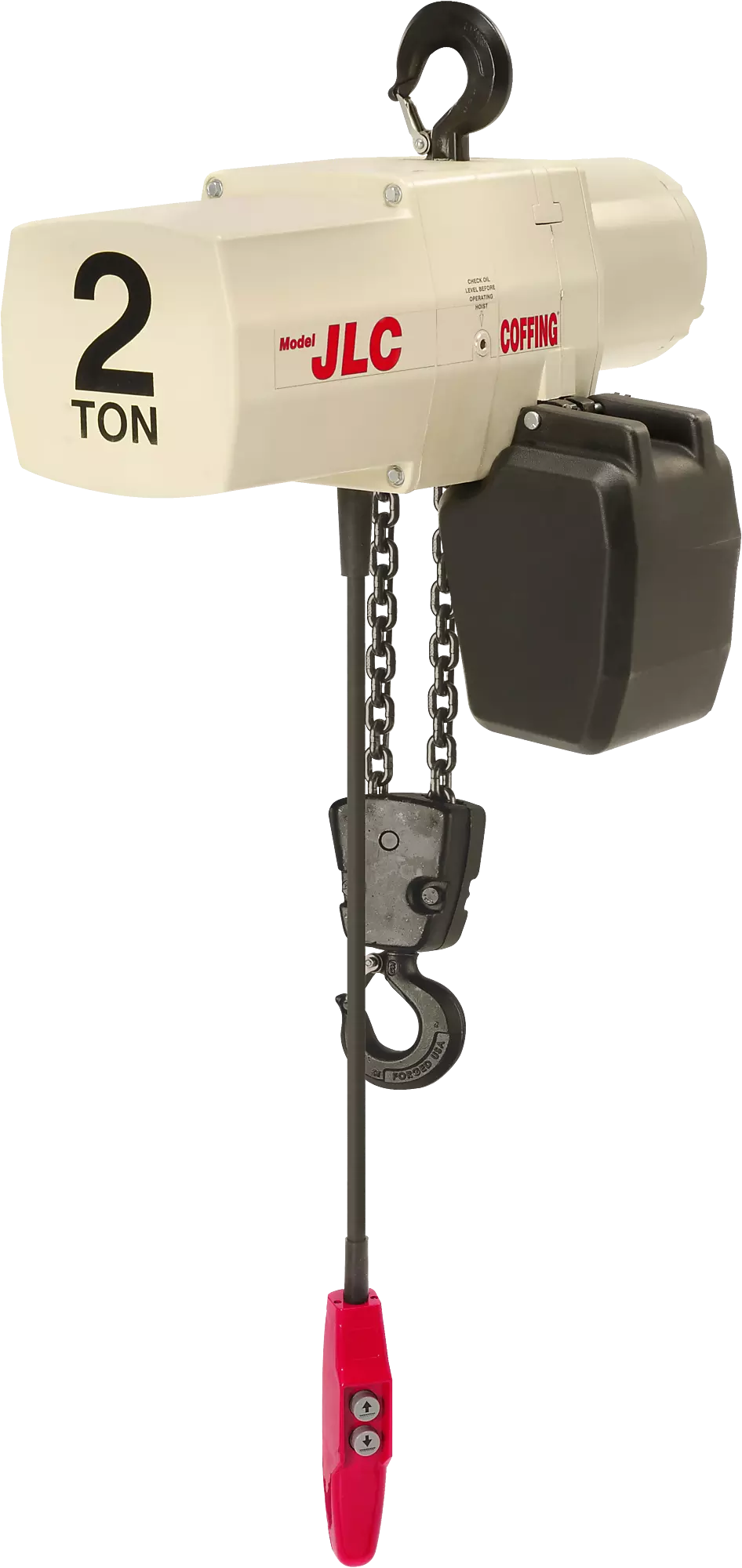

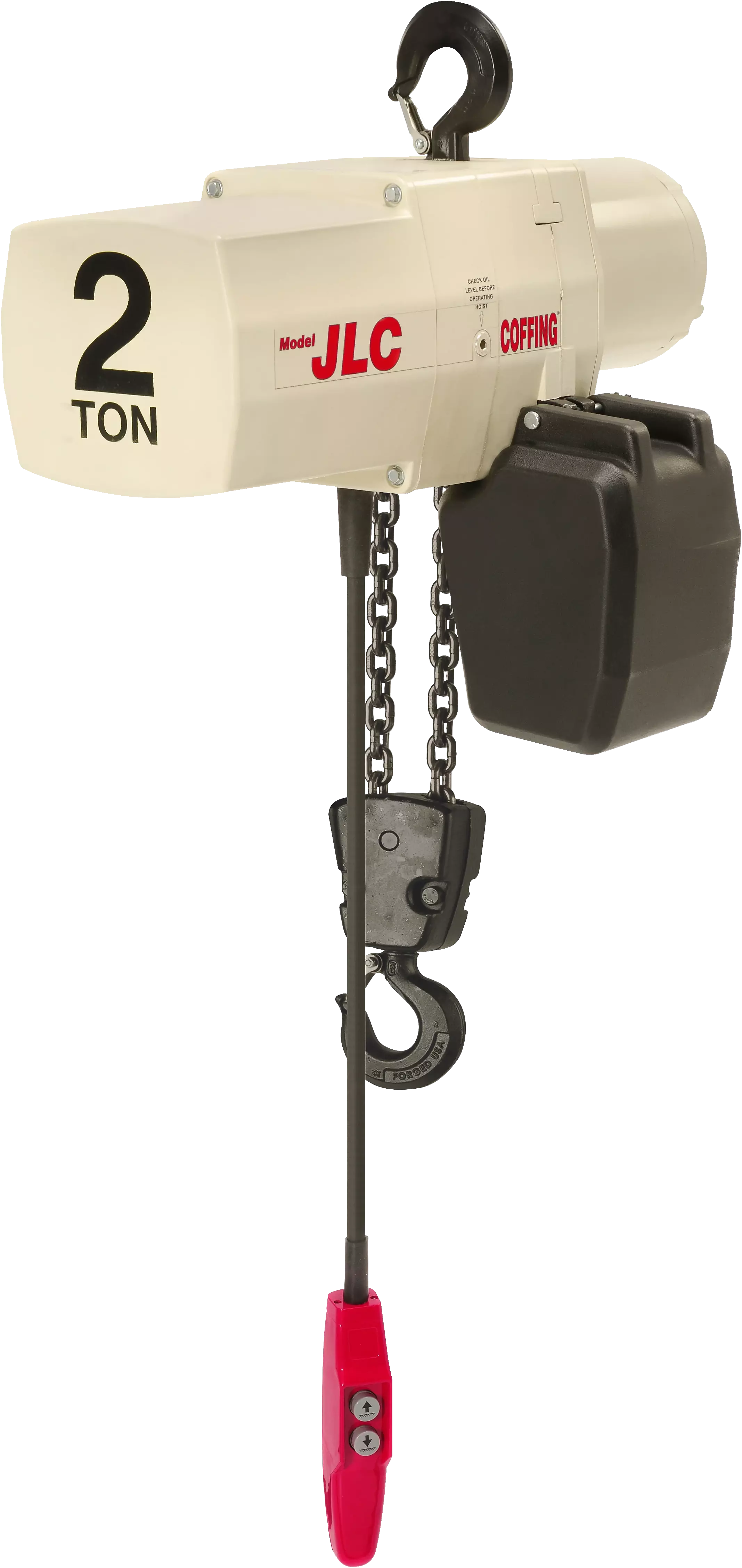

Coffing Hoists Electric Chain Hoist, JLC Series, 15′, 2t

Model: JLC
Web Price:
  • Off $556491
    $8,416.99
    ref: PELECT215JLC-21A
    Shipping 3 to 5 days
    1 in stock.
  • Off $439231
    $6,643.99
    ref: PELECT2158JLC-21A
    Shipping 3 to 5 days
    4 in stock.
    1.
    1. WLL
    2. 2t
    3. 2t
    1. Weight
    2. 112lb
    3. 112lb
    1. FPM
    2. 8'
    3. 8'/2.7'
    1. Speed
    2. 1
    3. 2
    1. Headroom
    2. 20.8125"
    3. 20.8125"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Duty Cycles
H4 (30min/h)
Hertz
60Hz
Phase
3
Standards
CSA
Voltage
575V

Description

Built for the heavy-duty demands of industrial applications.
Compact in size.
Multiple disc motor brake.
Overload clutch.
Chain end stop for safety.

Standard lifts
15 & 20 foot standard lifts.
Standard push button drop is 4 feet less than lift.
CSA approved.

Voltages
575 volts.
Three phase.
60 hertz standard.

Easy access for maintenance
Panel plate provides easy access to controls and motor leads for changing voltage on dual-voltage motors or servicing the hoist.
Connection wires are numbered to assist with maintenance.

Heavy-duty motor brake
Multiple disc motor brake with direct acting design for positive load spotting and holding.

Smoother lifting & reduced chain wear
5-pocket load sheave increases chain and sheave engagement 25% over hoists with conventional 4-pocket sheaves.
Provides smoother lifting and reduces chain wear.

Adjustable limit switches
Regulate upper and lower load travel.
Brass nuts standard for improved switch setting and repeatability.
Stainless steel limit switch shaft standard.

Guards against unsafe loading
Mechanical overload protection device protects hoist, operator and supporting structures from damaging overloads, chain jamming, and reverse phasing.

Two-speed hoist models
Optional with 3:1 speed ratio, 3-phase, single voltage only.

Longer & quiter operation
Oil bath transmission and precisionmachined alloy steel gears
for longer, quieter operation.

Nema 3R push button station
Ergonomic design fi ts operator’s hand for thumb or two-handed operation standard.
24V Control for operator safety.

Compact aluminium frame
Housing designed for portability and ease of installation.

Standard chain container
Durable chain container is standard on lifts up to 20 ft. single chain and 10 ft. double chain.

Lifetime warranty
