Crosby

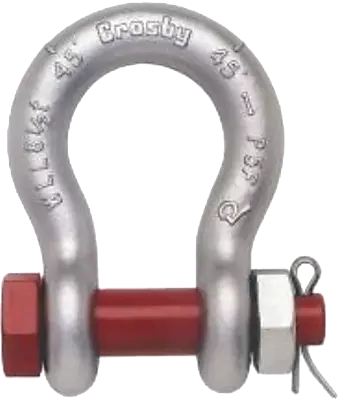

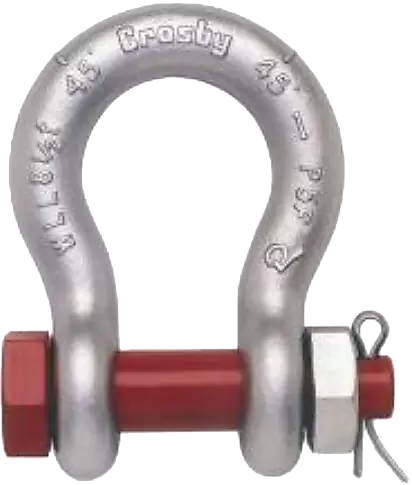

Crosby Bolted Shackle with Pin, 13t to 35t

Model: G2130
Web Price:
  • $38099
    ref: G213013/8CS-5P
    We do not know if nor when this product will be available again.
  • $46699
    ref: G213011/2CS-5P
    We are expecting more in 3 days.
  • $69699
    ref: G213013/4CS-5P
    We do not know if nor when this product will be available again.
  • $99999
    ref: G21302CS-5P
    We do not know if nor when this product will be available again.
    1.
    1. WLL
    2. 13.5t
    3. 17t
    4. 25t
    5. 35t
    1. Weight
    2. 15.83lb
    3. 19lb
    4. 33.91lb
    5. 52.25lb
    1. Nominal Caliber
    2. 1.38"
    3. 1.5"
    4. 1.75"
    5. 2"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
6/1
Standards
ASME B30.26RR-C 271D Type IVA, Grad A, Class 3
  1. WLL
  2. 13 ½t
  3. 17t
  4. 25t
  5. 35t
  1. A
  2. 2.25"
  3. 2.38"
  4. 2.88"
  5. 3.25"
  1. B
  2. 1.53"
  3. 1.66"
  4. 2.04"
  5. 2.30"
  1. C
  2. 5.25"
  3. 5.75"
  4. 7.00"
  5. 7.75"
  1. D
  2. 1.42"
  3. 1.53"
  4. 1.84"
  5. 2.08"
  1. E
  2. 3.63"
  3. 3.88"
  4. 5.00"
  5. 5.75"
  1. F
  2. 3.31"
  3. 3.63"
  4. 4.19"
  5. 4.81"
  1. H
  2. 9.16"
  3. 10.00"
  4. 12.34"
  5. 13.68"
  1. L
  2. 6.38"
  3. 6.88"
  4. 8.80"
  5. 10.15"
  1. M
  2. 7.21"
  3. 7.73"
  4. 9.68"
  5. 10.81"
  1. N
  2. 1.50"
  3. 1.62"
  4. 2.25"
  5. 2.40"

Description

  • Capacities from 13.5 to 35 metric tons
  • Forged, tempered and tempered.
  • Alloy steel axles
  • Forged SWL on each shackle
  • Hot-dip galvanized, designed  to resist fatigue
  • Safety factor: 6:1
  • Certification available upon request
  • Designed to resist fatigue
  • Crosby products meet or exceed all requirements of ASME B30.26
  • Bolted and pinned bow shackle with thin bolt head conforming to RR-C 27ID Type IVA, Grade A, Class 3 of the Federal Specification, except for special specifications requested by the contractor.
