Crosby

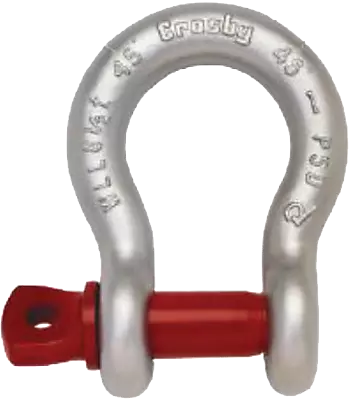

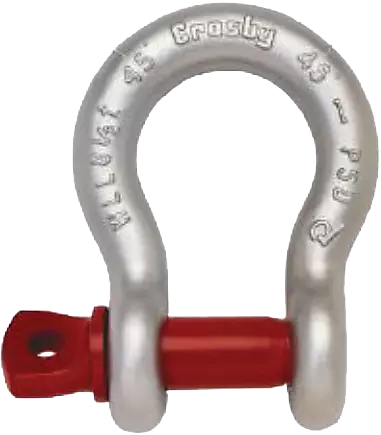

Crosby Screw Pin Anchor Shackle, 3.25t to 12t
Model: G209
Spécifications
- Design Factor
-
6/1
- Standards
-
RR-C 271D Type IVA, Grad A, Class 2
- WLL
-
3 ¼t
-
4 ¾t
-
6 ½t
-
8 ½t
-
9 ½t
-
12t
- A
-
1.06"
-
1.25"
-
1.44"
-
1.69"
-
1.81"
-
2.03"
- B
-
0.75"
-
0.88"
-
1.00"
-
1.13"
-
1.25"
-
1.38"
- C
-
2.38"
-
2.81"
-
3.31"
-
3.75"
-
4.25"
-
4.69"
- D
-
0.63"
-
0.75"
-
0.88"
-
1.00"
-
1.16"
-
1.29"
- E
-
1.69"
-
2.00"
-
2.28"
-
2.69"
-
2.91"
-
3.25"
- F
-
1.50"
-
1.81"
-
2.09"
-
2.38"
-
2.69"
-
3.00"
- G
-
2.94"
-
3.50"
-
4.03"
-
4.69"
-
5.16"
-
5.75"
- H
-
4.19"
-
4.97"
-
5.83"
-
6.56"
-
7.47"
-
8.25"
- L
-
0.44"
-
0.50"
-
0.50"
-
0.56"
-
0.63"
-
0.69"
- M
-
3.34"
-
3.97"
-
4.50"
-
5.13"
-
5.71"
-
6.25"
- P
-
0.69"
-
0.81"
-
0.97"
-
1.06"
-
1.25"
-
1.38"
Description
- Capacities from 3.25 to 12 metric tons
- Forged, tempered and tempered. Alloy steel axles
- Forged SWL on each shackle
- Hot-dip galvanized, designed to resist fatigue
- Safety factor: 6:1
- Certification available upon request
- Designed to resist fatigue
- Crosby products meet or exceed all requirements of ASME B30.26
- Bolt-on bow shackle conforming to Federal Specification RR-C 27ID Type IVA, Grade A, Class 2, except for special specifications requested by the contractor.
