Crosby

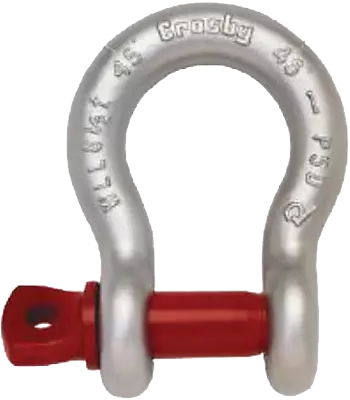

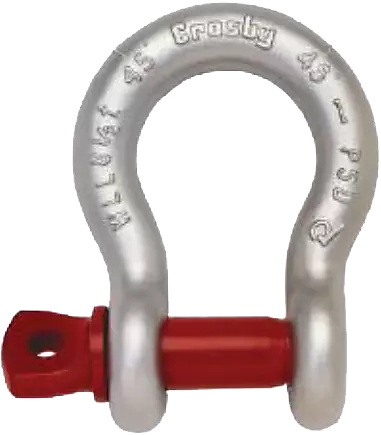

Crosby Screw Pin Anchor Shackle, 13.5t to 55t

Model: G209
Web Price:
  • $27899
    ref: G20913/8CS-5P
    Shipping 3 to 5 days
    10 in stock.
  • $32899
    ref: G20911/2CS-5P
    Shipping 3 to 5 days
    12 in stock.
  • $57099
    ref: G20913/4CS-5P
    Shipping 3 to 5 days
    4 in stock.
  • $73699
    ref: G2092CS-5P
    We are expecting more in 3 days.
  • $179599
    ref: G20921/2CS-5P
    Shipping 3 to 5 days
    3 in stock.
    1.
    1. WLL
    2. 13.5t
    3. 17t
    4. 25t
    5. 35t
    6. 55t
    1. Weight
    2. 13.53lb
    3. 17.20lb
    4. 27.78lb
    5. 45.0lb
    6. 85.75lb
    1. Nominal Caliber
    2. 1.38"
    3. 1.5"
    4. 1.75"
    5. 2"
    6. 2.5"
Added to cart

The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.

Spécifications

Design Factor
6/1
Standards
RR-C 271D Type IVA, Grad A, Class 2
  1. WLL
  2. 13 ½t
  3. 17t
  4. 25t
  5. 35t
  6. 55t
  1. A
  2. 2.25"
  3. 2.38"
  4. 2.88"
  5. 3.25"
  6. 4.13"
  1. B
  2. 1.50"
  3. 1.63"
  4. 2.00"
  5. 2.25"
  6. 2.75"
  1. C
  2. 5.25"
  3. 5.75"
  4. 7.00"
  5. 7.75"
  6. 10.50"
  1. D
  2. 1.42"
  3. 1.54"
  4. 1.84"
  5. 2.08"
  6. 2.71"
  1. E
  2. 3.63"
  3. 3.88"
  4. 5.00"
  5. 5.75"
  6. 7.25"
  1. F
  2. 3.31"
  3. 3.63"
  4. 4.19"
  5. 4.81"
  6. 5.69"
  1. G
  2. 6.38"
  3. 6.88"
  4. 8.86"
  5. 9.97"
  6. 12.87"
  1. H
  2. 9.16"
  3. 10.00"
  4. 12.34"
  5. 13.68"
  6. 17.84"
  1. L
  2. 0.75"
  3. 0.81"
  4. 1.00"
  5. 1.22"
  6. 1.38"
  1. M
  2. 6.83"
  3. 7.33"
  4. 9.06"
  5. 10.35"
  6. 13.00"
  1. P
  2. 1.50"
  3. 1.62"
  4. 2.25"
  5. 2.40"
  6. 3.13"

Description

  • Capacities from 13.5 to 55 metric tons
  • Forged, tempered and tempered. Alloy steel axles
  • Forged SWL on each shackle
  • Hot-dip galvanized, designed to resist fatigue
  • Safety factor: 6:1
  • Certification available upon request
  • Designed to resist fatigue
  • Crosby products meet or exceed all requirements of ASME B30.26
  • Bolt-on bow shackle conforming to Federal Specification RR-C 27ID Type IVA, Grade A, Class 2, except for special specifications requested by the contractor.
