Crosby

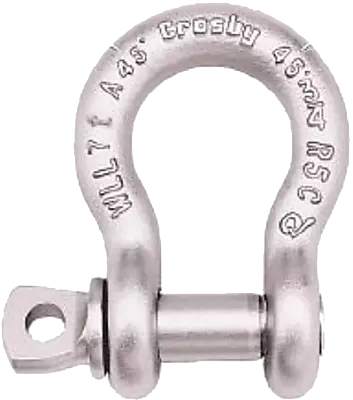

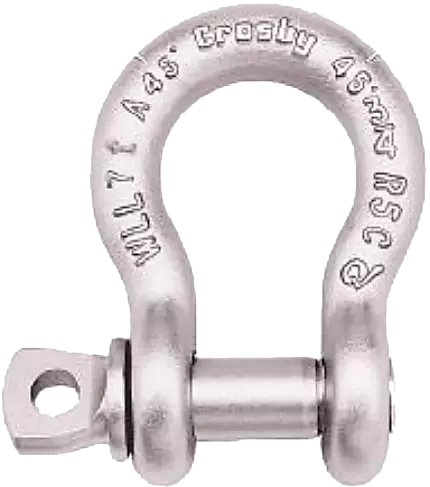

Crosby Alloy Screw Pin Anchor Shackle, 12.5t to 21t
Model: G209A
Web Price:
-
$12399ref: G209A1CS-5PWe are expecting more in 3 days.
-
$18199ref: G209A11/8CS-5PWe are expecting more in 3 days.
-
$25899ref: G209A11/4CS-5PWe do not know if nor when this product will be available again.
-
$34199ref: G209A13/8CS-5PWe are expecting more in 3 days.
-
- WLL
- 12.5t
- 15t
- 18t
- 21t
- Weight
- 5.32lb
- 7.25lb
- 9.88lb
- 13.25lb
- Nominal Caliber
- 1"
- 1 1⁄8"
- 1 1⁄4"
- 1 3⁄8"
-
Added to cart
The desired quantity or product is unavailable online.
To place a special order: 1 800 652-9759 #6805.
Spécifications
- Design Factor
- 4.5/1
- Standards
- ASME B30.26RR-C 271D Type IVA, Grad B, Class 2
- WLL
- 12 ½t
- 15t
- 18t
- 21t
- A
- 1.69"
- 1.81"
- 2.03"
- 2.25"
- B
- 1.13"
- 1.25"
- 1.38"
- 1.50"
- C
- 3.75"
- 4.25"
- 4.69"
- 5.25"
- D
- 1.00"
- 1.16"
- 1.29"
- 1.42"
- E
- 2.69"
- 2.91"
- 3.25"
- 3.63"
- F
- 2.38"
- 2.69"
- 3.00"
- 3.31"
- G
- 4.69"
- 5.16"
- 5.75"
- 6.38"
- H
- 6.56"
- 7.47"
- 8.28"
- 9.16"
- L
- 0.56"
- 0.63"
- 0.69"
- 0.75"
- M
- 5.07"
- 5.59"
- 6.16"
- 6.84"
- P
- 1.06"
- 1.25"
- 1.38"
- 1.50"
Description
- Forged SWL on each shackle
- Capacities from 12.5 to 21 metric tons
- Alloy steel forged, quenched and tempered. Alloy steel axles
- Shackles can be supplied with proof test certificate
- Hot-dip galvanized
- ASME B30.26
- Design Factor : 4.5/1
- Bow shackle screwed to RR-C 27ID Type IVA, Grade B, Class 2 of the Federal Specification, except for special specifications requested by the contractor.
