Tractel

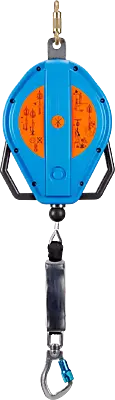

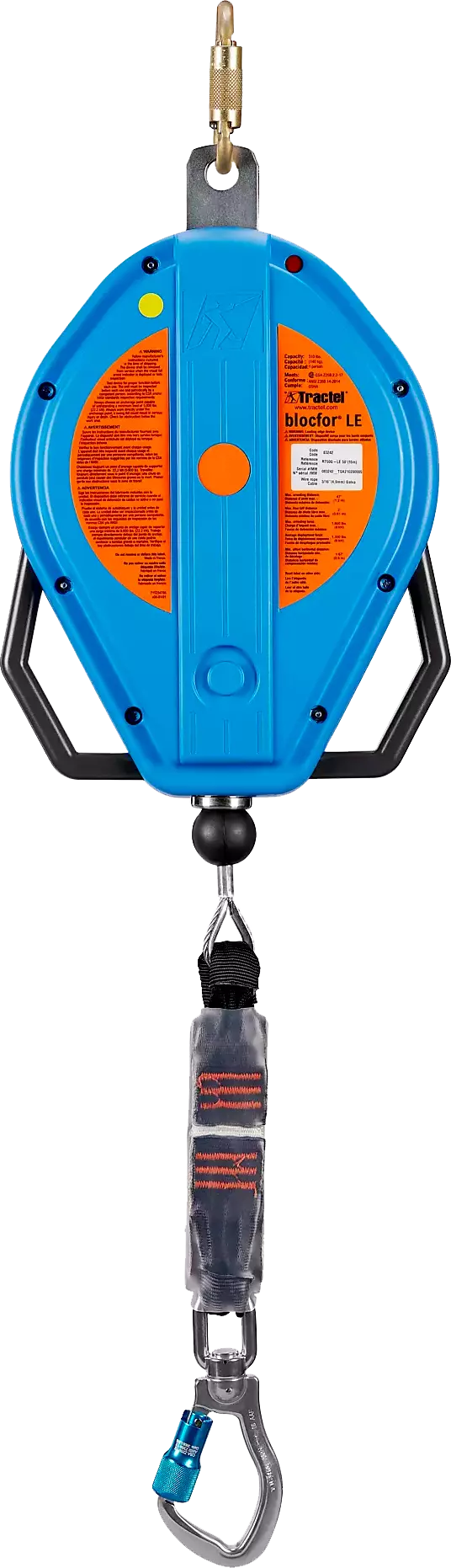

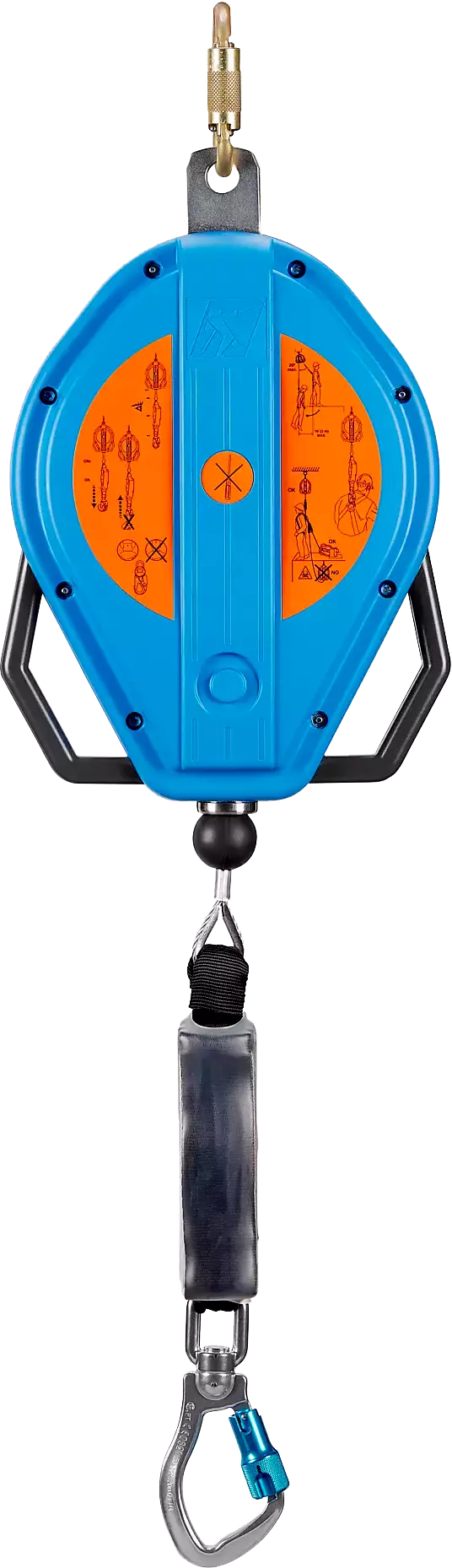

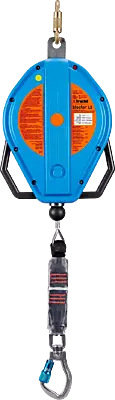

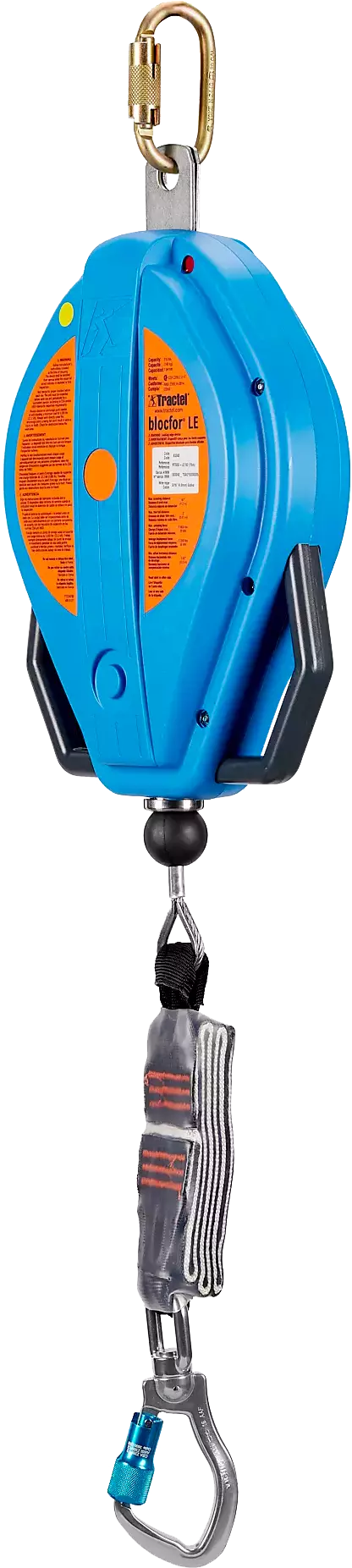

Blocfor® Galvanized Wire Rope Self-Retracting Lifeline for Leading Edge
Model: RT50G/LE, RT100G/LE
Spécifications
- Applications
-
AerospaceConstructionMinesShipsWork at a height
- Norme
-
ANSI Z359.14-2014CSACSA Z259.2.2-17OSHA
Description
Features
- Very lightweight
- Galvanized steel wire rope
- Easy to handle
- Tamper proof connector assembly including carabiner
- Leading edge capability on certain models
- Polyamide 6/ABS
- Sleek and durable housings
- Synchronized twin inertia-braking pawls
- Constant triggering speed regardless of position
- Impact-indicating snap hook
- Rubber recoil bumper
- Features two carrying handles that facilitate the transportation and installation of the device
- Provides freedom of movement at various heights
- Optional swivel at top recommended for horizontal applications
- Capacity 310 lbs. (140 kg), one person
Housing
- Synthetic case works with the frame to dissipate and absorb shock if dropped or struck by objects
Construction
- Isolated drum keeps all brake components contaminate-free
- All parts are corrosion resistant
- Mechanical parts are not dependent on the integrity of the housing
Brake Mechanism
- Twin stainless steel disc brakes with copper/alloy coil in the centre (all parts are anti-spark)
- Twin inertia and speed-activated brake pawls are designed to activate and engage at the same time. This design compensates against gravitational effects when the block is used horizontally. As a result, the braking system of the blocfor® offers faster reaction
Design
- Features a carabiner-positioning washer
- Rubber stop which is easy to take in hand and acts as a buffer when cable is accidentally released (high-speed recoil)
- Reinforced plastic rope guide is designed for high wear resistance, low cost and easy maintenance
- Swivel self-locking snap hook has a visual fall indicator to allow inspection before each use
Applicable Standards
- CSA Z259.2.2-17
- ANSI Z359.14-2014
- OSHA
